The ECHO HC-2020 and its rotating-handle counterpart, the HC-2020R, represent the ideal entry point into ECHO's range of professional petrol hedge trimmers. Engineered for applications where lightweight handling, precision cutting, and manoeuvrability are more important than maximum cutting reach, these compact hedge trimmers are trusted by professional landscapers, gardeners, estate managers, topiary specialists, and residential maintenance contractors.

Designed for detailed hedge trimming, ornamental shaping, and precision pruning, both models deliver the durability and reliability expected from professional commercial hedge trimmers while remaining exceptionally lightweight. They bridge the gap between domestic hedge trimmers and larger commercial machines, making them an excellent choice for contractors seeking a versatile primary trimmer for fine work or a lightweight secondary machine for finishing tasks.



Specification	ECHO HC-2020	ECHO HC-2020R
Engine Displacement	21.2cc professional-grade 2-stroke	21.2cc professional-grade 2-stroke
Maximum Power Output	0.6 kW (0.80 hp) at 8,500 RPM	0.6 kW (0.80 hp) at 8,500 RPM
Dry Weight	4.5kg	4.6kg (rotating handle model)
Overall Length	956mm	980mm
Cutter Blade Type	Double-sided, double-reciprocating	Double-sided, double-reciprocating
Effective Cutting Length	534mm (21 inches)	534mm (21 inches)
Cutter Pitch (Tooth Spacing)	35mm	35mm
Fuel Tank Capacity	0.39 litres	0.39 litres
Fuel Consumption at Maximum Power	0.44 L/h	0.44 L/h

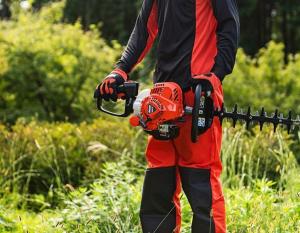

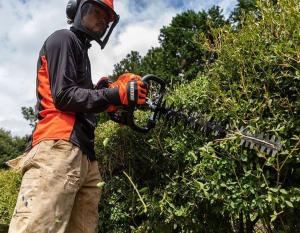

HC-2020:     HC-2020R:

Engineering Deep Dive & Key Innovations

The 21.2cc professional two-stroke engine features a hard chrome-plated cylinder bore paired with a durable twin-ring piston design. This advanced engineering reduces friction, minimises thermal expansion, and improves resistance to wear during continuous high-RPM operation. The result is smoother running, improved engine longevity, and the reliable performance professional users expect from an ECHO petrol hedge trimmer.

Position Ergonomic Rotating Handle (HC-2020R)

The HC-2020R incorporates ECHO's five-position rotating rear handle, allowing the grip to rotate 90 degrees left or right with positive locking positions at 0°, 45°, and 90°. This ergonomic design enables operators to maintain a natural wrist position when trimming vertical hedge faces, shaping ornamental shrubs, or working beneath overhanging growth. Reduced wrist strain improves operator comfort while enhancing cutting precision during prolonged commercial use.

Precision-Milled Blade Rails

The commercial-grade cutter bar features rigid steel guide rails with adjustable blade tension bolts, allowing operators to fine-tune blade clearance as components naturally bed in over time. Correct blade adjustment maintains smooth cutting performance, reduces vibration, and extends the service life of both the blades and gearbox, ensuring consistently clean cuts across a wide range of hedge trimming applications.

Operational Ergonomics & Commercial Usability

Weighing just 4.5kg, the HC-2020 is one of the lightest models in ECHO's professional hedge trimmer range, helping reduce operator fatigue during prolonged use and overhead cutting.

Its carefully engineered centre of gravity is positioned close to the front loop handle, creating a neutral balance that allows effortless manoeuvrability when shaping rounded hedges, trimming formal box hedging, or producing intricate topiary designs. This lightweight, balanced design provides excellent control, making the HC-2020 and HC-2020R ideal for precision landscaping and detailed commercial hedge maintenance.

Maintenance, Servicing & Care Protocol

Clean the tool-free commercial felt air filter every 25 operating hours. Wash the filter in warm soapy water, allow it to dry completely, and reinstall before use to maintain optimum airflow and engine performance.

Inspect blade bolt tension every 50 operating hours. Loosen the locking nut, tighten the tension bolt until finger-tight, then back it off by one-quarter of a turn before securing the locking nut. Correct blade adjustment promotes cleaner cutting, smoother operation, and reduced wear on the cutter bar.
